Autode Diagnostikaseade Launch X431 PRO5 2024
Zīmols:
Vienība: kompl
Daudzums: 2
Piegādes laiks: 0-2 päeva

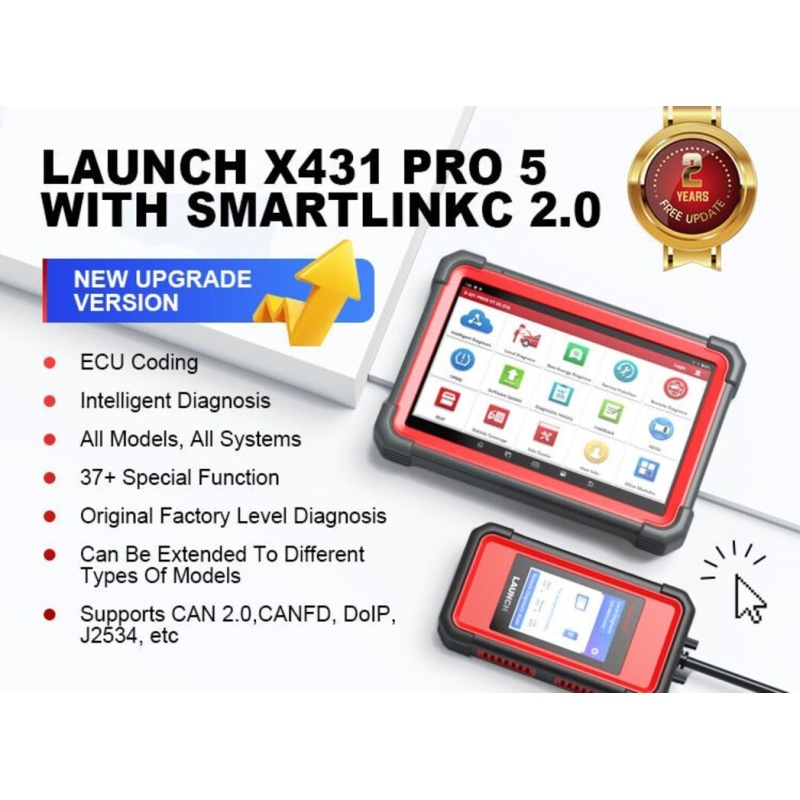

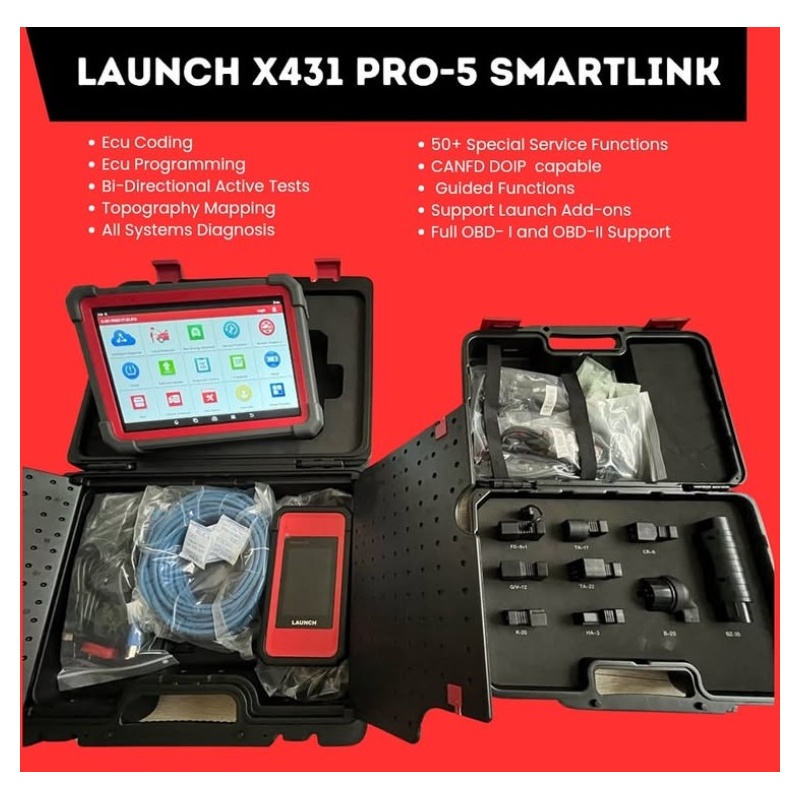

LAUNCH PRO5 2024 All in One Kit + Smartbox 3.0 ( ECU-de programmeerimise ja seadistamise abivahend)
See LAUNCH diagnostikaskanner suudab luua andmesideühenduse kõigi hooldatava sõiduki süsteemide ja alamsüsteemidega:
– Hankige testitud juhtseadmete ECU teave, sealhulgas seadme tüüp, versiooninumbrid ja muud spetsifikatsioonid jne.
– Lugege ja kustutage DTC-sid, et leida probleemsed alad ja kustutada koodid.
– Vaadake iga parameetri üksuse reaalajas andmeid.
Järgnev on loend kaasaegsetest sõidukisüsteemidest, millele see skannimistööriist juurde pääseb.
-Mootorid / Automaatkäigukast / Turvapadjad / Immobilisaator / Võtmekoodid / ABS / Püsikiiruse hoidja / Instrumendid / Isetasanduvad vedrustussüsteemid
-Istmed / uksed / värav / roolinurk / õhkvedrustus / keresüsteemid / elektrooniline roolivõimendi ja mootoriga / roolivõimendi / rehvirõhu / vihmaandurid / 4WD süsteem
-Stabilisaator / Intelligentne parkimisabi / Uksemootorid / Audiosüsteemid / Konditsioneer / Tiptronic / Vargusvastane / Pehme katus / Esitulede kõrguse reguleerimine / Kesklukustus / Automaatne sidur / DPF lähtestamine
-Elektrilised aknad / libisemise programmeerimine / tagaakna soojendus / ksenoontuled / pesulapp / kütusepõletussoojendus / ülekandekast / istmemälu / õli kasutusea taastamine / lükanduksed / elektrooniline gaasihoob
-Navigatsioonisüsteem / ümberminekuandur / püsikiiruse hoidja / multifunktsionaalne rool / lisaküte / elektrooniline seisupidur / siduri elektroonika … ja palju muud.
See kõikehõlmav skannimisprotsess suudab vigased süsteemid üles leida ja nendega seotud DTC-d hõlpsalt hankida. Nii saate töötada kõigi sõidukisüsteemide osadega, et parandada jõudlust, säästa energiat, vähendada heitkoguseid ja kõike muud.
2. 37+ lähtestamisfunktsioonid
① Õli lähtestamise teenus – pärast mootoriõli vahetamist sulgege õli hooldustuli ning lähtestage hooldusläbisõit ja hooldusintervall.
② Roolinurga kalibreerimine – kustutage eelmise roolinurga anduri mälestused ja salvestage asendatud.
③ Elektroonilise seisupiduri lähtestamine – lähtestage uus elektrooniline seisupidur rataste ohutuks pidurdamiseks uuesti.
④ Aku register ja aku hooldus – veateabe kustutamiseks tehke sõiduki aku lähtestamine ja aku uuesti vastavusse viimine.
⑤ ABS-i õhutamine.
⑥ Elektroonilise gaasiklapi positsiooni lähtestamine ja õppimine – lähtestage gaasiklapp täiturmehhanismid vaikeolekusse, et reguleerida gaasiklapi (või tühikäigumootori) toiminguid täpselt.
⑦ Diisli tahkete osakeste filtri (DPF) regenereerimine – puhastage tahked osakesed DPF-filtrist, et stabiliseerida filtri jõudlust
⑧ Rehvirõhu monitori süsteemi lähtestamine – õppige TPMS-andureid uuesti, et ECU saaks uued andurid ära tunda.
⑩ Vargusvastane sobitamine (IMMOBILISER) – lisage uus programmeeritud võti. PIN-kood on nõutav.
⑪ Injektori sobitamine – täpse suhtluse ja süstimise juhtimise tagamiseks kirjutage ECU-sse uued pihustite numbrid.
⑫ AFS-i lähtestamine – see tuvastab keskkonna valguse ja otsustab seejärel, kas lülitada esituled automaatselt sisse või mitte. Samuti saab see esitulesid õigeaegselt reguleerida, jälgides sõiduki sõidukiirust ja kehaasendit.
⑬ EGR-kohanemine – vähendage lämmastikoksiidide (NOx) sisaldust heitgaasis ja parandage kütusesäästlikkust osalise koormuse korral.
⑭ Käigukasti sobitamine – pärast käigukasti lahtivõtmist või parandamist testige käigukasti vastavalt sõidutingimustele, et käiguvahetus oleks mugavam ja ideaalne.
⑮ Katuseluugi hooldus – lülitage katuseluugi lukustuslüliti sisse/välja vastavalt ilmale, temperatuurile ja mälule.
⑯ SUS-i lähtestamine – kui vahetatakse õhkvedrustuse kere kõrgusandur ja juhtmoodul või auto tase on vale, tuleb see funktsioon teostada kere kõrguse anduri tasandamiseks.
⑰ Elektriakende kalibreerimine
⑱ Istmete kalibreerimine
⑲ Rehvi lähtestamine, keelevahetus
⑳ A/F lähtestamine, jahutusvedeliku õhutus
21. Transpordirežiim
22 NOx anduri lähtestamine
23 ADblue Reset
24 Stopp/Start Lähtesta
3. Aktiivne test (kahesuunaline test või käivitamise test)
Selle diagnostikatööriista aktiivse testiga saate käsu ECU-sse väljastada, et täiturmehhanisme sisse/välja lülitada, et oma auto alamsüsteemides vigu hõlpsalt leida, ilma sõiduki juhtnuppu kasutamata:
[ Lülitage radiaatori ventilaator sisse | Moduleerige gaasi | Ava/sulge aknad | Peeglite kasutamine | Lülitage tuled sisse/välja | Lülitage helisignaal | sisse/välja Katsetage ukse lukku … ]
4.ECU kodeerimine
Alates tootjapõhisest ümberprogrammeerimisest kuni täieliku diagnostikavõimaluseni on sellel LAUNCH diagnostikaskanneril ka võlujõud ECU kodeerimine, et hoida teid tipptasemel:
1) Pärast remonti või asendusi saate äsja installitud ECU mooduli sobitada, uuesti õppida ja kodeerida.
2)Saate muuta turuspetsiifilisi seadeid, et aktiveerida kõrgema taseme auto funktsioone ja keelata mittevajalikud funktsioonid, rikkudes piiranguid.
5.VAG juhitavad funktsioonid
See funktsioon on mõeldud Audi, Volkswagen Skoda ja Seati jne jaoks: samm-sammult kuvatavad juhised, X431 PROS V Plus Automotive obd2 skanner juhendab teid autodiagnostika eksperdiks isegi siis, kui olete algaja.
Key Points to Buy X431 PRO5:
-
Newest Release of LAUNCH in the year of 2023, latest hardware and software equiped.
-
All System Diagnosis + All 50+ Reset Service + Active Test
-
ECU Coding & Programming via Smartbox 3.0 ( Used as J2534)
-
Support CAN FD and DoIP
-
VAG Guided Function
-
FCA AutoAuth Access
-
OE-Level car coverage. 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.
-
24+ Languages Support .
-
No IP Limit. You can use it all around the world.
-
Two Years Free Update. It will not be locked after 2 years, local diagnostic software will work for a lifetime.
-
Five Years Warranty. We offer free aftersale service within 5 years.
-
Compatible with X-PROG3, Heavy Duty software, X-431 TSGUN, BST360, VSP-600, ADAS, WIFI Printer etc.
1. 2022 New Arrivals, NO IP limited, 2 Years Free Update, 5 Years Warranty
The genuine X431 diagnostic scanner officially authorized from LAUNCH; no IP restrictions; extra-long 2 years software updates at no costs; extended 5 years quality backup.
2. Multilingual Support
Chinese Simplified, English, Traditional Chinese, Japanese, Korean, French, Spanish, Portuguese, Italian, Russian, German, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian , Finnish, Hungarian, Swedish, Turkish, Serbian, Croatian
3. Upgraded from X431 V+/Pros Mini/PRO3/TURBO/Throttle
A rich array of future-proof functions for productive works: 1) SmartBox 3.0, J2534 ECU Programming, Intelligent AutoVIN & AutoScan, Active Tests, All System Diagnostics, VAG Guided Function, FCA AutoAuth Access, etc.; 2) advanced Online ECU Coding & Adaptations brings more personal settings; 3) 50+ service functions with more frequent updates to support more vehicles.
4. SmartBox 3.0 -- Multifunctional Connector
1) Fix the most vehicles with OE-level vehicle coverage; meet SAE standards for J2534-1 & -2, CANFD, DOIP and support DC9-36V for HD Vehicles; 2) also serves as a wireless VCI.
5. OE-level Car Coverage
OE-level Car Coverage – 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.
6. Intelligent Diagnostics
AutoVIN & AutoScan powers all-systems DTC scans that clock in at an average of < 3 minutes.
7. Full Bidirectional Active Test
Effectively test car components on demand.
8. FCA AutoAuth Access
Bypass SGM in FCA vehicles seamlessly and within seconds; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. *Need AutoAuth subscriptions.
9. VAG Guided Function
Skip the routine procedure of entering the security access code & channel number for VW, Audi, Skoda, Seat vehicles.
10. Add Modules to Expand Features
ADAS Calibration Toolkit; VSP-600 VideoScope; X431 TPMS TSGUN; BTS360 Bluetooth Battery Tester; X-PROG & X-PROG3 Immobilizer.
11. Non-16pin Connectors & Cables Kit
enable to work on varied vehicles across the world.
12. User-Oriented – One-touch software updates
24/7 online feedback; save, record data, and automatically generate reports to share via email; 12-channel graphic live data stream displayed in one screen with max. 4 streams can be merged; 25 languages menu.
13. Great Combination
Android 9.0 OS, 8-core 1.8GHz processor, 4GB RAM & 64GB ROM (128G expandable), 10.1” HD 1920*1200 touchscreen, 8MP rear & 5MP front camera, 7000 mAh battery, etc.
Specification for Launch X431 PRO5 Tablet
Display: 10.1-Inch ，1920x1200 FHD IPS
CPU: 8-Core Processor, 1.8 GHz
Camera: 500，800
WI-FI: 2.4GHz /5GHz
Android 9.0
RAM: 4G, ROM 64G
Battery： 7000 mAh / 3.8V
Operating voltage: 9~36V
Storage Temperature:-20℃~70℃ (-4℉~158℉)
Working Temperature:0℃~50℃ (32℉~122℉)
Dimension: 267*191*33 mm (10.51*7.52*1.30 inch)
Package size: 594*164*410 mm (23.39*6.46*16.14 inch)
Specification for VCI Connector
RAM: 256M
ROM: 8G
Wi-Fi: 2.4GHz/5GHz dual-band
Working Temperature: 0℃~50℃ (32℉~122℉)
Operating voltage: DC9~36 V (open the heavy-duty card software and purchase the heavy-duty card connector
It can be easily extended to heavy trucks) Note: It is not standard and needs to be paid separately.
Dimension: 200*75*40 mm (7.87*2.95*1.57 inch)
New protocol support: J2534, CANFD, DOIP
SmartBox 3.0: Easy to Manage Wider Vehicles
The optimization to the LAUNCH X431 scan tool’s software communication with the vehicles of today and of the future, dramatically improves scanning, coding, and reprogramming performance.
1.LAUNCH X431 Smartbox 3.0 is compatible with all new J2534/DOIP/CANFD protocols giving you power to access data and OE programming downloads for Toyota, Honda, Volvo, VW, GM, Chrysler, Benz, Jaguar, Land Rover, GE, and BMW E/F/G Chassis. It also serves as a wireless VCI allowing the vehicle to transmit data to the diagnostic tablet without a physical connection.
2.Serve as the VCI Box for Wireless Diagnostics – Transmit vehicle data to the diagnostic tablet without a physical connection.
3.Compatible with new communication protocols of CANFD (compatible with some GE car models), and DOIP (compatible with BMW E/F/G Chassis, Jaguar, Land Rover), and support DC9-36V for HD Vehicles (need the extra purchase of HD software, non-16pin HD adaptors); offering the OE-level aftermarket coverage to have maximum manipulation and calibration previously allowed in a manufacturer's software controls.
How to Use SmartBox 3.0 as a J2534 Pass-through Box?
1.Download the OEM software in Automakers’ Service Webs. You can reach us to get web sites.
2.Connect the SmartBox 3.0 to your computer with the included USB cable, or via the stable and solid 5G Wi-Fi network.
3.Connect the SmartBox 3.0 to your vehicle’s DLC port with/without the included extended OBDII cable.
4.Download and install the drivers for SmartBox 3.0 at the LAUNCH official site.
5.Run “SmartBox Tool 3.0” and there you go.
Served as J2534 ECU Programming
Now launch x431 pro5 can do ecu programming as J2534 for BMW and Benz, offering cost-effective access to data and OE programming downloads from vehicle manufacturers.
Other brands are coming soon.
ECU Coding: Alter the Car on Your Demand
From manufacturer-specific reprogramming to full diagnostic capability, this LAUNCH diagnostic scanner also has the magic power “ECU Coding” to keep you on the cutting edge:
1) You can match, relearn, and code the newly installed ECU module after making repairs or replacements. 2) You can change the market-specific settings to activate higher-level car functions and disable unneeded features, breaking limitations.
Work for Both 12V cars and 24V trucks
If you need heavy duty truck software, please contact with us and buy software from us.
then we will help you authorize heavy duty truck software and send the Non-16pin connector kit to you and you can use this disgnostic tool to diagnose 12v cars and 24v trucks without HD module.
Active Test----Enhance Your Experience.
This X431 scan tool also functions as a bi-directional car scanner to perform specific tests and functions without using the vehicle’s own controls to save time. For example: using the diagnostic tool to command the fuel pump on. If the fuel pressure gauge shows proper fuel pressure, you’d know the fuel pump circuit and pump are functioning properly. The process just takes < 5 minutes. If test manually? Three times as long!
Guided Functions
Guiding you to be an expert in automotive diagnostic.
Compatible with Volkswagen / Audi / Skoda / Seat etc.
FEEDBACK----Take Your Guesswork Out
Any wonder about what specific diagnostic issues you may challenge? This scan tool thoughtfully offers direct access to the “Feedback” function module, which provides customized repair suggestions from LAUNCH’s certified professionals. This is invaluable to workshops attempting to fix issues of new car models that have only been on the market for a short time.
Advanced ALL Systems Diagnoses
This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:
1) Retrieve ECU information including unit type, version numbers, and other specifications, etc.
2) Read & erase DTCs to locate problem areas and clear the codes.
3) View Live Data of each parameter item.
4) This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance performance, save energy, reduce emissions, and everything else.
50+ Hot Reset & Relearn Maintenance Services
You can easily choose multiple commonly-used service functions, follow their clear and precise instructions to complete complex projects much faster, including but not limited to the following:
-Oil Maintenance Light Reset: reset the oil service lamp; re-calculate the optimal oil life change interval.
-Steering Angle Reset: reset the steering angle to zero to keep the car running straight.
-Injector Coding: write the new injector code into the system to correct cylinder injection quantity.
-Electronic Parking Brake Reset: help replace and reset the brake pad.
-ABS Bleeding: help exhaust the air in ABS system in an easy way.
-Throttle Matching: initialize the throttle actuators to the default state.
-Battery Matching: register the battery after replacement.
-DPF Regeneration: help remove the particulate matter to keep the trap stable.
-Anti-theft Matching (IMMO Service): disable lost keys to prevent the car from being stolen, and add new keys. *Limited in default; can be fully upgraded with X-PROG & X-PROG3.
-Tire Pressure Reset: reset the tire pressure.
-Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.
-Headlight Matching: initialize the adaptive headlamp system.
-Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.
-Sunroof Initialization: initialize the sunroof when to be locked off, or closed.
-Tooth Learning: help to finish tooth learning after changing crankshaft in the car engine.
And many more with expanding. Function menus vary by manufacturer, year, and model. Reach us for compatibility check.
NOTE: *Explore more service functions by accessing menus of “Vehicle Brand -> System Diagnostics -> Special Function”.
Expand Your Business
This LAUNCH X431 scanner can be combined with compatible functional modules (sold separately) to meet your various diagnostic scenarios:
1) ADAS Calibration Toolkit: calibrate driver assistance systems;
2) VSP-600 VideoScope: inspect areas inaccessible;
3) X431 TSGUN: full-capacity TPMS functions;
4) BTS360 Bluetooth Battery Tester: test battery in-vehicle or out-of-vehicle;
5) X-PROG & X-PROG3 Immobilizer: advanced key programming & IMMO service.

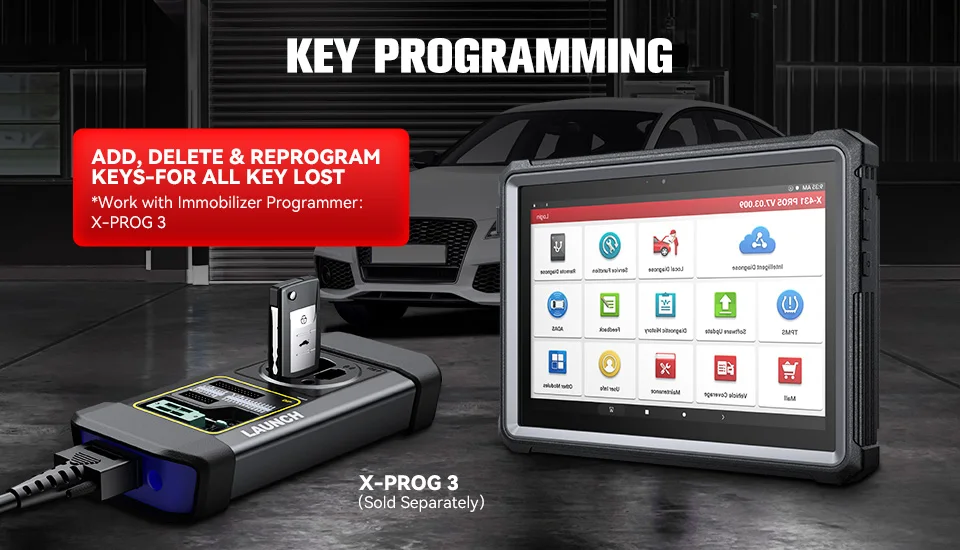

Key Programming (Need to work with x431 x-prog3 to do key programming)
Key Programming : >>>>Add, Delete & Reprogram Keys, >>>Rewrite smart keys, All smart keys lost, Replace smart key ECU, Replace KNOB IGNITION;>>>>Reset Key: Relearn a key. (Note:this key programming function is NOT universally compatible .please check compatibility with us if necessary. X431 PRO 5 supports PINCode reading for most cars before 2008 ,for vehicles after 2008,you need to have PINCode to do key programming)
TPMS Programming
Activate all sensors,TPMS relearn,Program

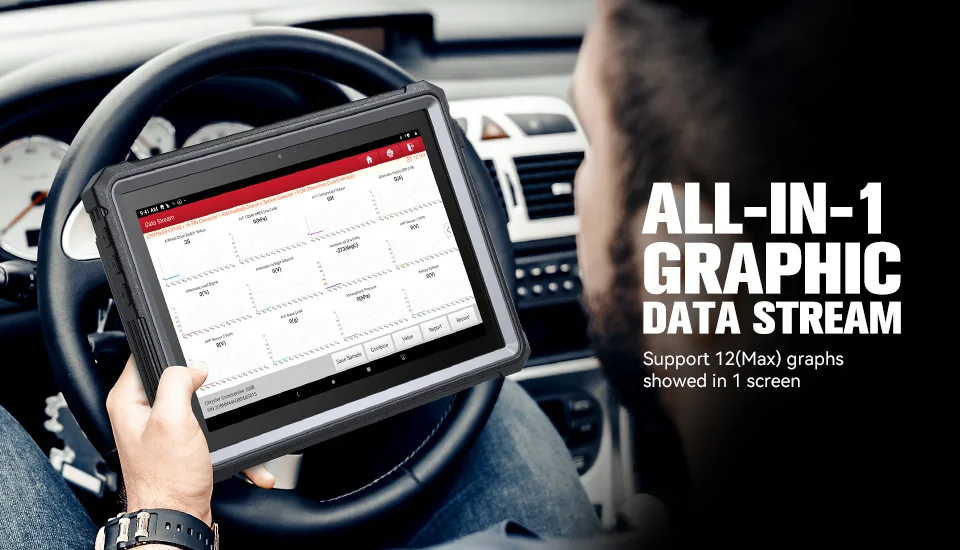

Boost Your Efficiency
See what your car is doing in real time; get car performance, sensor data and more at one glance! This diagnostic scanner presents the live data stream in 3 modes: a. Numbers and lists (default); b. Wave patterns (max. 12 channels in one screen); c. Merged graph (max. 4 data can be merged) for you to quickly identify if the data are in normal conditions, ranges or not.

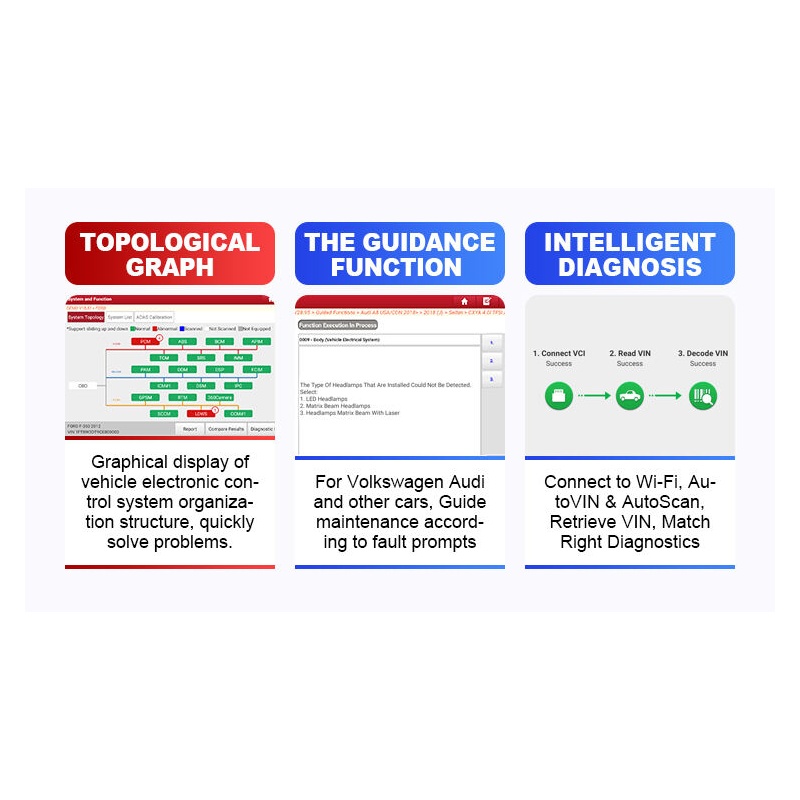

AUTOVIN--- Maximize Your Intelligence
This intelligent scanner will automatically identify the make, model, and manufacture year in one touch; help you match the right software so the diagnosis will be carried out fast and efficiently. You will also enjoy how smart it would be to record the test results as Inspection Report, being done by itself, letting you maintain vehicle health logs and share the information easily.
Remote Diagnosis
Users can carry out the remote diagnosis to ask for the remote control from other LAUNCH diagnostic tools (including but not limited to V+ 4.0), which are equipped with the remote diagnosis module as well, or from a PC client technician. This has realized the reality that a mechanic can diagnose an abnormal vehicle, which is even thousands of miles away.
Health Report Generate and Share
With LAUNCH X431 pro 5, you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.
Printer diagnostic result
You can share car diagnostic data via email ,then print it via PC , or optional wifi , and you can order Launch x431 mini wifi printer , then one-key priner
Wide Vehicle Coverage across the Global -American Cars
