Citroen/Peugeot диагностический сканер Lexia 3 PP2000

Esinduse tasemel Peugeot ja Citroen diagnostikaseade.

Lexia-3 PP2000 Diagnostic Tool Description:

1. It is compatible with Citroen cars including: C1,C2,C3,C4,C6,C8,C-CROSSER,NEMO,BERLINGO,JUMPY,JUMPER,AX,SAXO,BX and so on.

2. It is compatible with most Peugeot cars from 1995.

3. Diagnostics is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

Lexia-3 PP2000 Diagnostic Tool Function:

Unlike other universal car scanner tools which only read fault codes; this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

1.Read identification

Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...

2. Read fault codes

Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure"). Program supports report printing or copy to clipboard.

3. Clear fault codes this function clears all stored fault codes and other diagnostic information.

4. Auto-scan (complete car scan/test)

Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values

Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.

6. Actuator test

Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

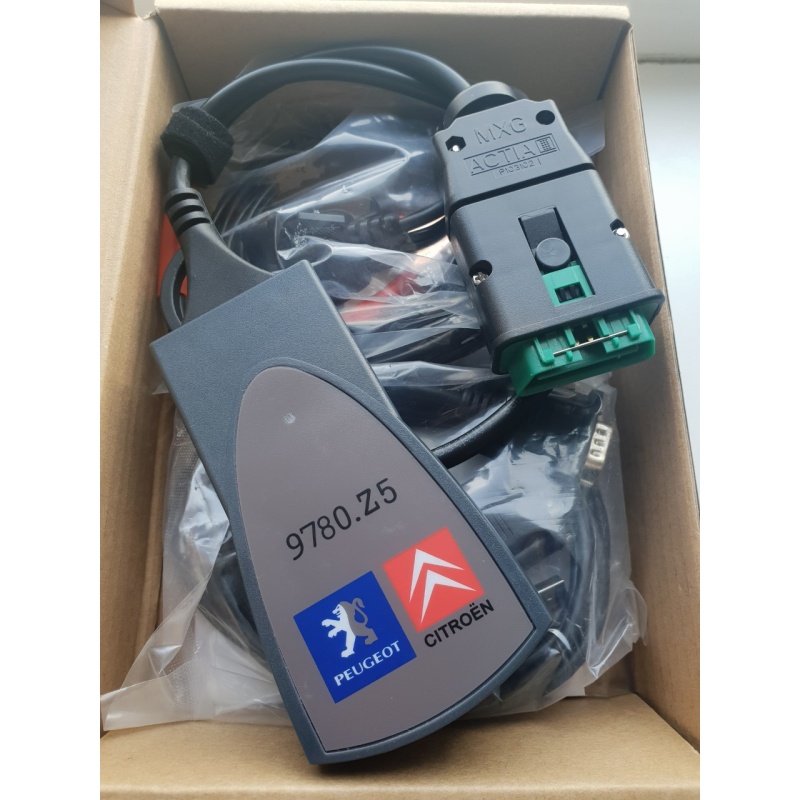

LEXIA-3/PP2000 Package list:

1pc x Main unit with extension OBD2 cable

1pc x OBD2 cable

1pc x Instruction for Installation and Activation DVD for PP2000

Lexia-3 PP2000 Hardware and Software Requirements:

Software requires at least Intel Celeron/Pentium III 400 MHz, 128 MB RAM, 50MB free HDD space and USB 1.1 port (USB 2.0 recommended) and Microsoft Windows 98 SR2/2000/XP with the latest service pack installed. If customer requires, we can prepare ready to work PC. Dont work with 64Bit Windows.
